    Truss Roof Steel Structure Workshop Building Construction

    Ask Lasest Price
    Brand Name : QHHK
    Model Number : Steel Structure Workshop
    Certification : ISO9001:2015,ISO14001:2015,ISO45001:2018
    Price : usd $49-79square meter
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000Square Meters per Month
    Delivery Time : Shipped in 30 days after payment
    • Product Details
    • Company Profile

    Truss Roof Steel Structure Workshop Building Construction


    Truss Roof Steel Structure Workshop Building Construction


    Product Description:


    Content:steel frame

    Dimension: 85*40*10m(length*width*height)

    Quantity:98 Tons

    Contact value: USD 118,000

    Description: This project is located in New Zealand. Total workshop area is 3500 sqms, with few columns-removed portal frame. This is design not make the trimming joist (chinese standard). But make the central big truss to make all the workshop as a whole.



    Steel structure:

    is made from organized combination of structural steel members designed to carry loads and provide adequate rigidity.
    The members of the steel structures are made of steel and are joined by welding, riveting or bolting. These structures are reliable and require less material than other types of structures due to the high strength of steel which are distinguished by the diversity of their shapes and their architectural expressiveness.


    Steel Structure Application Fields:

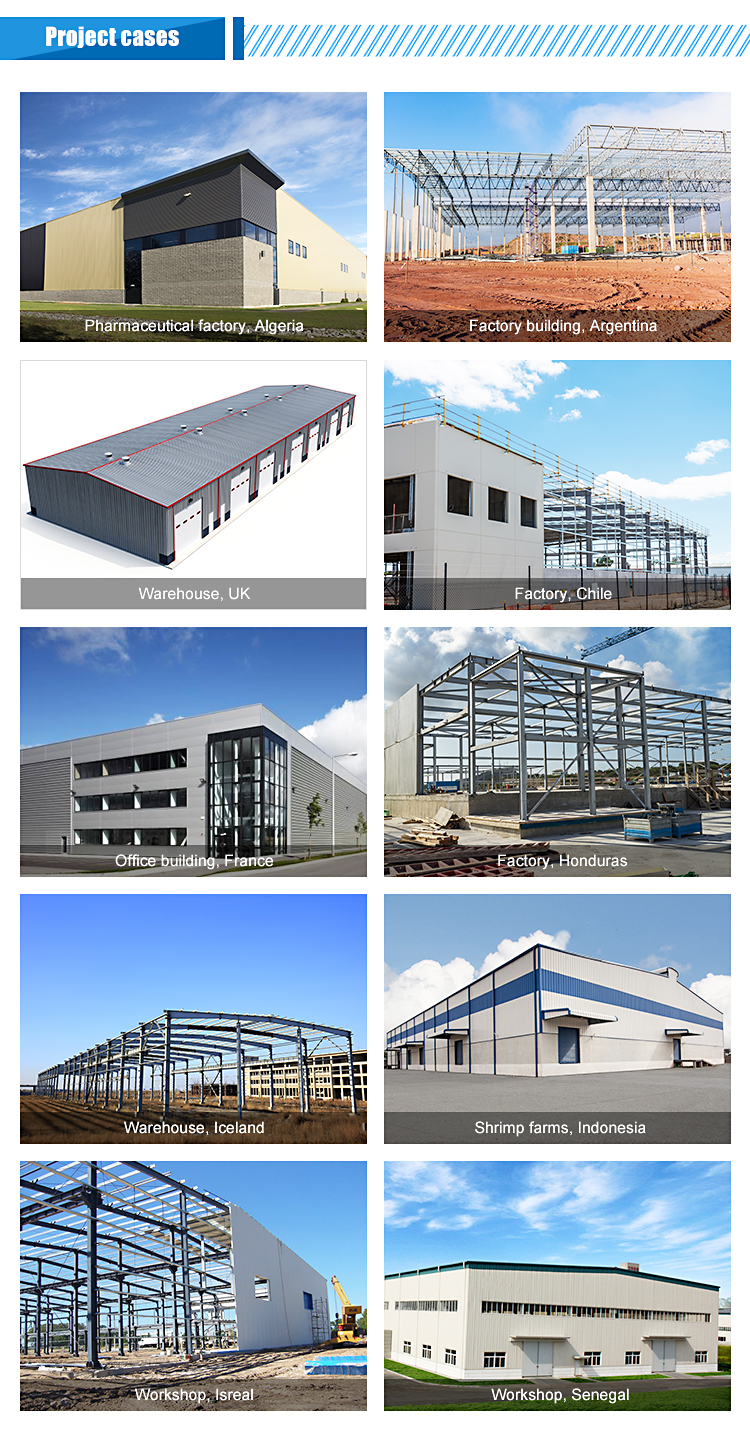

    We cater for every market from warehouses, workshops to 4S car exhibition centers, shopping mall, aircraft hangers, poultry & pig sheds, container houses, agricultural & commercial buildings and so on.


    Characteristics:

    1. Cost savings: be inexpensive to manufacture, requires less maintenance than other traditional building methods. Moreover, 98% of all steel structure can be recycled into new steel products without reducing physical properties.

    2. Quick erection: steel structures can be erected quickly. The accuracy of steel components speeds up the process and allows monitoring on the management software to complete sooner.

    3. Health and safety: Structural Steel is manufactured at the factory and rapid erection on the construction site by skilled personnel making steel structure safe. Industry surveys consistently demonstrate that steel structure is the safest solution. There is very little noise and dust in the process of steel structure erection because structural steel members are fabricated at the factory.

    4. Flexibility: Can be modified in the future for new application, loading conditions, vertical expansions and changes in owner’s desires in ways that other framing systems can not accomplish.



    Main parts of the steel structures and technical parameters:

    Main Steel Frame System
    Main structureH section steel Q355, alkyd painting, two primary painting, two finish painting.
    Roof purlinXZ160*60*20*2.5, galvanized
    Wall purlinXZ160*60*20*2.5, galvanized
    Intensive boltGrade 10.9
    Turn buckle boltM20+2, steel Q235, processing
    Anchor boltM24, steel Q235, processing
    Ordinary boltGalvanized bolt M20
    Ordinary boltGalvanized bolt M12
    Brace nutGalvanized bolt M12
    Bracing System
    Cross braceΦ20 round steel bar Q235, process and painted (alkyd painting)
    Angle braceL50*5 angle steel Q235, process and painted (alkyd painting)
    Column bracingΦ25 round steel bar Q235, process and painted (alkyd painting)
    Tie barΦ127*3 steel pipe Q235, process and painted (alkyd painting)
    Batter braceΦ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
    Wall & Roof System
    Roof panelCorrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
    Wall panelCorrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
    Edge cover0.4mm color plate, angle Alu.
    Fittings & accessoriesNails, glue etc.
    Unpowered ventilatorDiameter Φ600, stainless steel
    Sky lighting band1.2mm FRP, double layer
    Sliding doorsandwich panel door
    Roof drainage system
    Gutter0.8mm color steel plate
    Rainspout pipesΦ160 PVC pipe
